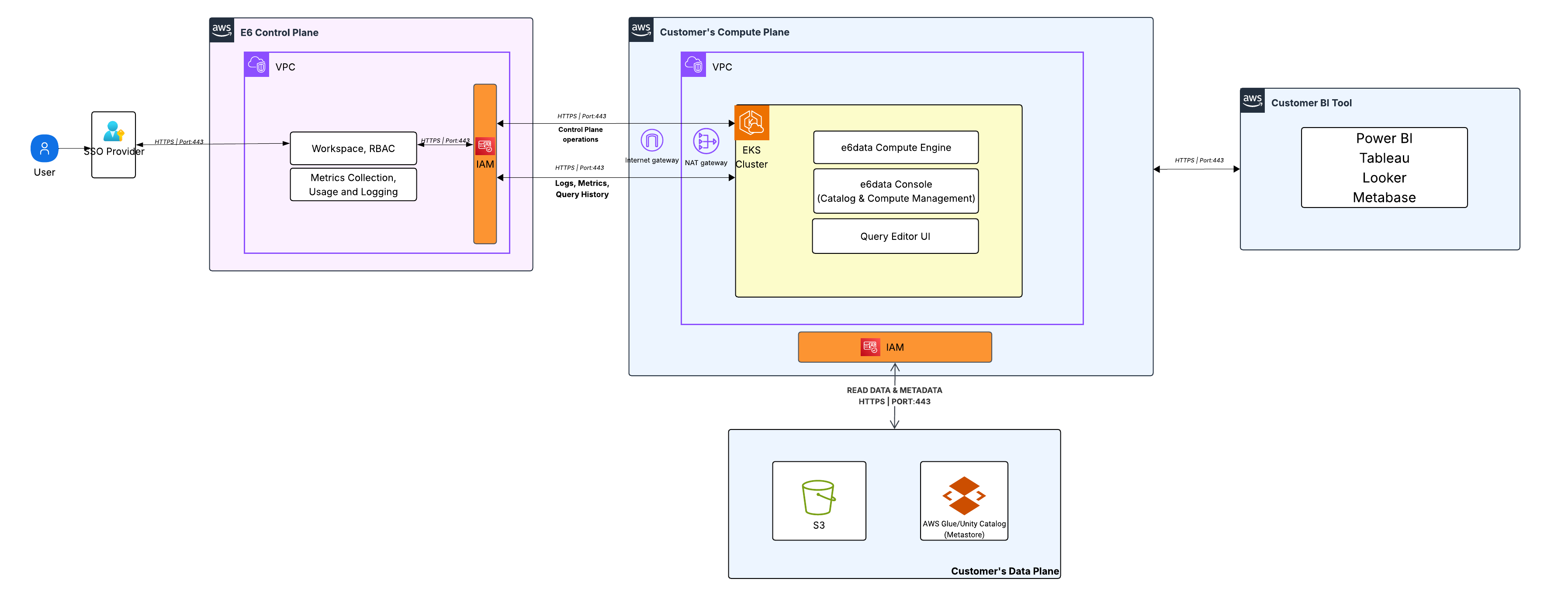

An In-VPC deployment runs the entire e6data Compute Plane inside your own AWS VPC on Amazon EKS. AWS In-VPC deployment architecture

​
What this gives you

  • Your data stays in your account. All access to S3 and your catalog happens through IAM roles inside your environment.
  • Full network isolation. Query traffic never traverses the public internet.
  • Complete visibility. You have access to all AWS resources, logs, and metrics in your account.

​
What the Control Plane does

The e6data Control Plane (hosted by e6data) handles only:
  • Admin operations and workspace management.
  • Access control and authentication.
  • Observability - metrics and logs sent over HTTPS on port 443.
Your data never leaves your environment.

​
Components

The deployment installs cluster-wide platform components (the e6-operator, Karpenter, the AWS Load Balancer Controller, and cert-manager) and, per workspace, a set of workspace components (console, query routing, monitoring collection, and a metadata compaction job). These are enumerated in Component versions and operations.

​
See also

Last modified on September 29, 2026
